Celenit Acoustic/Mineral Panels
natural two-layer acoustic panels
Ideal solution for suspended and floating ceilings
Composite thermal and acoustic insulation board, consisting of a layer of Celenit acoustic panel coupled to a layer of mineral wool with non-woven glass fibre,
according to EN 13162 standard. These high quality boards for design acoustic absorption systems. Available in PEFC or FSC® certification.
Panels are manufactured in a range of thicknesses to achieve the highest sound absorption performance, from low to high frequencies.
These panels are ideal for the refurbishment of existing ceilings and for suspended and floating ceilings. Celenit Acoustic/Mineral Panels can be installed directly on wooden battens fitted to your existing ceiling, saving you the trouble of removing the old ceiling. The acoustic ceiling and backing layer are installed in one and the same workflow, saving valuable construction time.
The backing layer is cut to size and set back from the edges of the panel so that it fits between profiles or wood battens.
Celenit Acoustic/Mineral Panels advantages:
- Aesthetically pleasant
- High sound absorption performance
- Available with various edges and colours
- Fire resistant
- Unaffected by rising damp and moisture
- Water and frost resistant
- Environmentally friendly
Click on image to view full size
Celenit Acoustic/Mineral Panel Properties

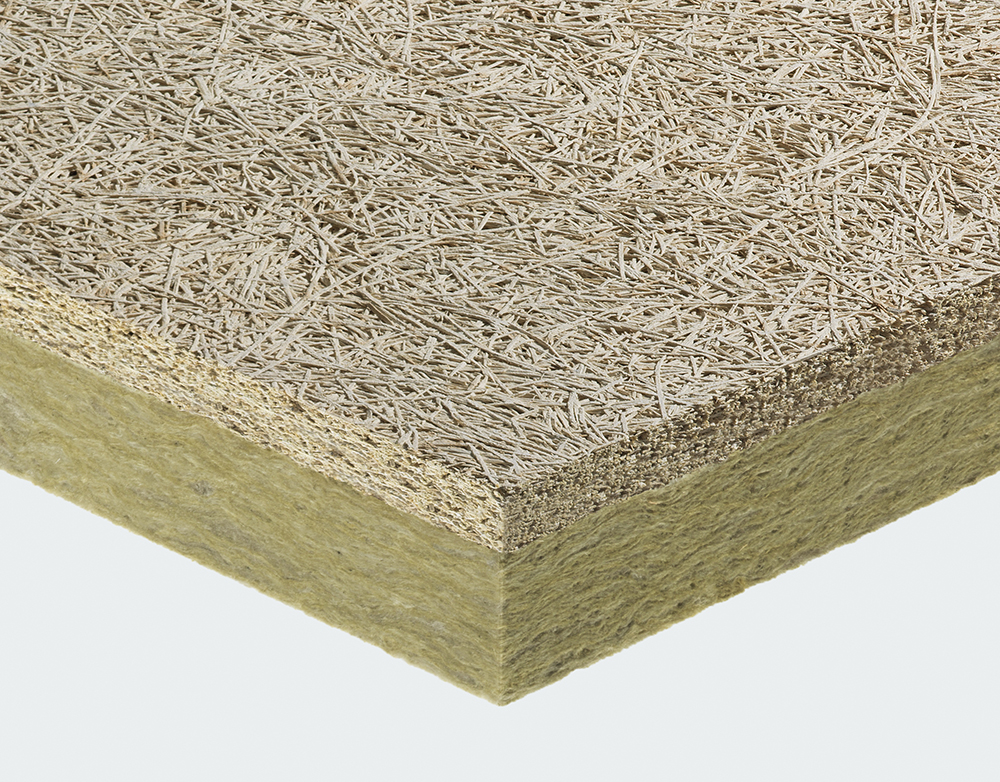

The Celenit series’ two-layer acoustic panel consists of a classic Celenit panel with a backing layer of sealed mineral wool.
- Good acoustics
- Healthy indoor climate
- Documented sustainability
- Effective fire protection
- Natural strength
- Flexible design solutions
Space-saving, efficient design
Not only do Celenit Acoustic/Mineral Panels save you installation time, they also saves space.
With dimensions down to 43 mm thick, you can achieve almost the same sound absorption properties as with a suspended Celenit ceiling plus a separate layer of mineral wool.
With Celenit Acoustic/Mineral Panels, you can achieve almost the same sound absorption values as with a Classic suspended Celenit ceiling with mineral wool behind but with a lower fitting height.
Technical Data
L2ABE25
| Width (mm) | 600 | ||
| Length (mm) | 1200 | ||
| Thickness (mm) | 43 | 50 | 65 |
| Layers structure (mm) | 25/18 | 25/25 | 25/40 |
| Weight (kg/m2) | 13.2 | 14.1 | 15.6 |
L2ABE25C
| Width (mm) | 600 | ||||
| Length (mm) | 1200 / 2000 | ||||
| Thickness (mm) | 50 | 75 | 100 | 125 | 150 |
| Layers structure (mm) | 25/25 | 25/50 | 25/75 | 25/100 | 25/125 |
| Weight (kg/m2) | 14.7 | 17.2 | 19.7 | 22.2 | 24.7 |
Easy-to-install new acoustic ceiling
Problems with noise and poor acoustics can be solved with a new acoustic ceiling. However, most people are daunted by the thought of having to remove the existing ceiling – a comprehensive process which causes inconvenience and generates dust. But this can be avoided.
You install Celenit Acoustic/Mineral Panels directly on wooden battens fitted to the existing ceiling and this saves you the trouble of removing the old ceiling. Drop sheets and a rolling scaffold are all that is required and the refurbishment can be completed in just a few days.
Removable ceilings
Celenit Acoustic/Mineral Panels are also the ideal solution for removable ceilings where workmen may require later access to installations above the ceiling. In profile systems for concealed or exposed fitting, you just tilt up the acoustic panel to inspect and maintain installations above the ceiling.
The back of the mineral wool is covered with non-woven material and glued to the back of the Celenit panels, so workmen completely avoid contact with mineral wool fibres.
Floating acoustic clouds
Floating acoustic clouds using Celenit or Celenit Acoustic/Mineral Panels are an ideal solution if it is not possible to fit Celenit acoustic panels to the entire ceiling surface.
Simply install Celenit or Celenit Acoustic/Mineral Panels using the C60 profile system.
This creates an easy and elegant acoustics solution for defined areas.
